The EMU PRO is a stand-alone engine management system aimed directly at professional motorsport with a comprehensive feature set and vast tuning possibilities. It offers precise powertrain control coupled with the ultimate flexibility to adapt the engine calibrations for the most demanding projects. EMU PRO comes in two versions: EMU PRO 16 targeting applications with a high number of inputs/outputs and EMU PRO 8 for smaller (up to 8 cylinders) engines.
Download Files
Software:
Manuals:
EMU PRO Software Guide 116.2.1
EMU PRO Wiring Diagram Example for 4 Cylinder Engines
How-to Log Data to a USB Drive in EMU PRO
How-to Use Password Protection in EMU PRO
How-to Use APS Tuner in EMU PRO
How-to Use DBW Tuner in EMU PRO
How-to Use VE Tuner in EMU PRO
How-to Configure VVT in EMU PRO
How-to Configure Fuel Film in EMU PRO
Pinout:
Technical Drawings:
Other:
SPECIFICATION
KEY FEATURES |
|
| Advanced fueling model including closed-loop short- and long-term trim algorithms combined with fuel film model gives exceptional accuracy of injectors control. |
|
| Software is designed to give the user unprecedented flexibility of configuration of strategies. The user may adjust the size of all tables in the software and the channels used on each table axis. Bins values on the X and Y axis can be changed too, which increases the accuracy of the table readouts in non-linear parts of the described model. |
|
| Flexible system with custom functions, numbers, CAN inputs and CAN exports, well known from Power Management Unit (PMU) and Advanced Display Unit (ADU). |
|
| Stand-alone sequential gearbox/ paddle-shift advanced strategy, up to 4 closed-loop stages, PWM solenoids control. |
|
| Number of outputs and inputs covering most demanding applications. | |
| Engine type support – Four-stroke, two-stroke, rotary; up to 12 cylinders. | |
| Oxygen sensor – 2 x internal LSU 4.9 controller, up to 4 sensors support. | |
| 2 x DBW full support with auto-calibration. | |
| User-defined table sizes up to 32×32. | |
| Up to 4 VVT support, auto-calibration. | |
| 2 x CAN 2.0A/B, 1 x LIN bus. | |
| 2 x knock sensors. | |
| Logging to external USB memory. | |
| Up to 500 Hz data-logging. | |
| 8 [4] x EGT inputs (or high-precision analog inputs). | |
| Total of 46[31] outputs and 30[24] inputs. | |
| Custom user functions, numbers, tables, and outputs. | |
| Water resistant IP 65 enclosure, bespoke CNC machined aluminum. | |
| On-line parameters analysis displayed on the graph log. | |
| Dimensions (mm) and weight (g):
EMU PRO 8 : 165x95x38, 464g EMU PRO 16 : 197x95x38, 561g |
|
*8-version features are listed in square brackets
Accessories:

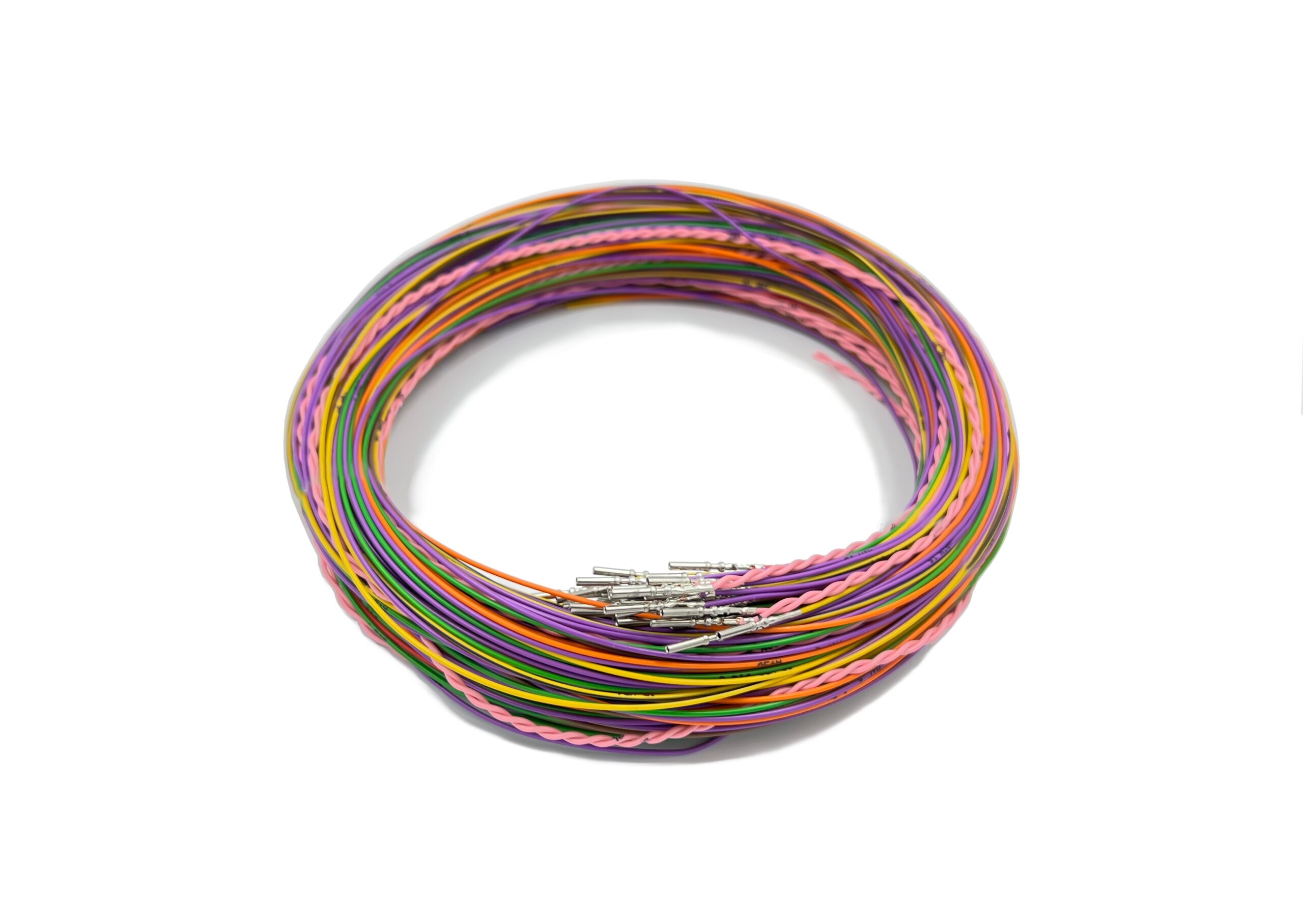

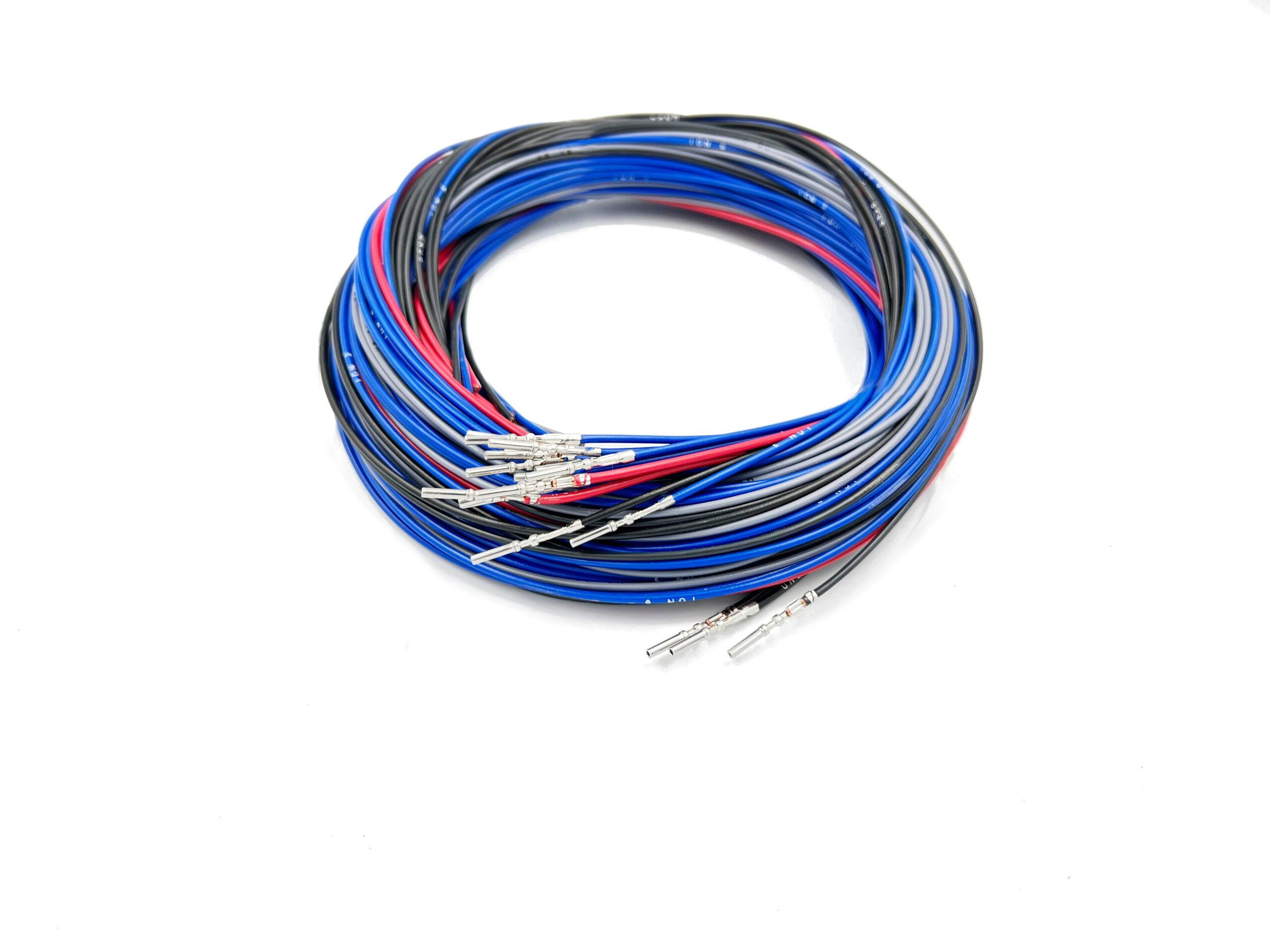

PRETERMINATED LABELED WIRING HARNESS FOR EMU PRO:
